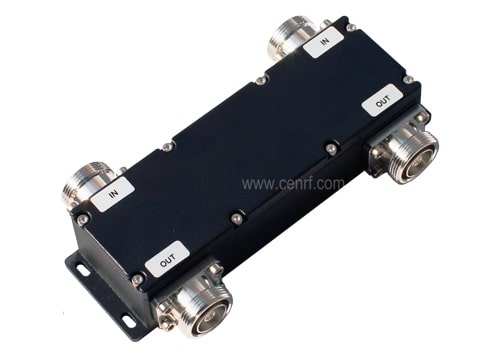

Hybrid Coupler 4in 4out 698-2700MHz -150dBc N-Female IP65
.jpg)
| Frequency Range | 698 – 2700MHz |
| Insertion Loss | <7.1dB (Including Distribution Loss and Fluctuation) |
| Isolation | >20dB |
| VSWR | <1.3 |
| Size / Dimension | 238*98*34mm |
| PIM (IMD3) | <-150dBc@2×+43dBm |
| Connectors | N-Female, 50Ω |
| Power Handling | 200W / input port; (Total Power 500W) |
| Operating Temperature | -20 to 60℃ |
| Application | IP65, Outdoor or Indoor |
| Color | Black |
| Material | Cavity aluminum silver-plated; Connector: Copper |
| Net Weight | 1.0Kg |
