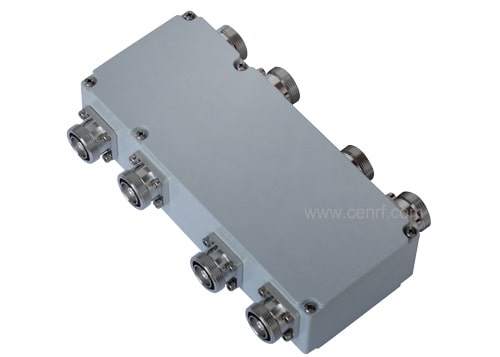

Hybrid Combiner 4in 4out 700-2700MHz -155dBc DIN-Female
| Frequency Range | 698 – 2700MHz |
| Insertion Loss | ≤6.1dB ±0.7dB |
| VSWR | ≤1.20 |
| Isolation | ≥30dB |
| Power Handling | 200W / input port; (Total Power 800W) |
| PIM (IM3) | ≤-155dBc@2×+43dBm |
| Connector | DIN-Female, 50Ω |
| Operating Temperature | -20 to 60℃ |
| Humidity | 0% to 99% |
| Size / Dimension | 258*97.4*59 |
| Application | Indoor / Outdoor, IP65 |
| Material | Cavity aluminum silver-plated; Connector: Copper |
| Net Weight | 3.0Kg |
